People talk about “SATA 3” and “2.5 SSDs” in computer storage all the time. Understanding these terms is key for choosing fast, reliable storage and making upgrades easier.
SATA 3 is a data transfer interface, supporting up to 6Gbps speeds for SSDs and hard drives. A 2.5-inch SSD using SATA 3 fits most desktops and laptops, delivering better performance than older SATA versions.
If you plan to upgrade your computer or build a new one, knowing which SSDs are compatible and how SATA 3 boosts speed will make your choices much simpler. Let’s break down the details behind SATA 3, the 2.5-inch SSD format, and what SATA means for solid-state storage.
What is SATA 3 in SSD?
SATA 3 is the third generation of the SATA interface, and it is now the most common connector for 2.5-inch SSDs found in consumer computers.
SATA 3 (also called SATA III or Serial ATA Revision 3.0) is a data interface that supports up to 6Gbps (750MBps) transfer speeds. It connects SSDs and hard drives to the motherboard.
SATA stands for "SATA stands for "Serial Advanced Technology Attachment." The original SATA version started at 1.5Gbps, then SATA 2 jumped to 3Gbps, and now SATA 324 reaches up to 6Gbps
Most 2.5-inch SSDs today use SATA 3 as their main interface. You connect them via a SATA cable to a dedicated SATA port on the motherboard. If your system is older, it may only support SATA 2, in which case your SSD will work but at lower speeds.
Even though SATA 3 is fast, some newer SSDs use NVMe or PCI Express for even higher speed. However, SATA 3 remains popular due to wide compatibility and solid performance, especially in mainstream laptops, desktops, and external drives.
SATA 3 Evolution Table
| SATA Version | Max Speed | Typical Use | Year |
|---|---|---|---|
| SATA 1 | 1.5Gbps | Early HDDs/SSDs | 2003 |
| SATA 2 | 3Gbps | Mainstream HDDs/SSDs | 2004–2008 |
| SATA 3 | 6Gbps | Most 2.5-inch SSDs | 2009+ |
What does 2.5 SATA SSD mean?
When someone says “2.5 SATA SSD,” they are describing the physical size and data interface of the solid-state drive.
A 2.5 SATA SSD is a solid-state drive that uses the SATA interface and comes in a 2.5-inch wide form factor, the same size as standard laptop hard drives.
The “2.5” refers to the width of the drive in inches. Most laptop and desktop hard drives use the 2.5-inch or 3.5-inch form factor, but nearly all SSDs for laptops are 2.5-inch. This size makes them easy to fit into laptop drive bays or desktop chassis using a bracket.
“SATA” means the drive connects using the SATA standard. Simply put, if your computer has a SATA port and a 2.5-inch bay, you can install a 2.5-inch SATA SSD just like a hard drive. This offers fast speed, easy upgrades, and plug-and-play compatibility.

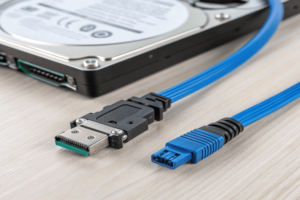

Unlike M.2 or NVMe SSDs, 2.5 SATA drives are rectangular and have two connectors—one for data and one for power.
SSD Form Factors Table
| Form Factor | Width | Interface | Common Use |
|---|---|---|---|
| 2.5-inch | 2.5″ | SATA | Notebooks, desktops |
| M.2 | ~22mm | SATA/NVMe | Ultrabooks, servers |
| 3.5-inch | 3.5″ | SATA | Large desktops, HDDs |
What does SATA mean for SSD?
The SATA interface determines how SSDs connect to computers and how fast data moves between storage and the rest of the system.
SATA means the SSD uses a specific connector and protocol to transfer data, influencing speed, compatibility, and upgrade options in most computers. SATA SSDs outperform HDDs and easily replace older drives.
SATA has become the most widely used connector for SSDs and traditional hard drives. For an SSD, using SATA often means you can swap it in place of a hard drive to get faster performance. SATA SSDs are more reliable, silent, and faster than all but the newest hard drives, but still slower than M.2 NVMe SSDs.
SATA compatibility is a major advantage. Most desktops, laptops, and even external enclosures support SATA, so you do not need to buy new hardware just to get SSD performance. For general use, SATA SSDs offer great speed, wide availability, and easy installation.
SATA also sets a speed ceiling for SSDs—a SATA 3 SSD, no matter how good, will not go faster than about 550–600MBps.SATA also sets a speed ceiling for SSDs—a SATA 3 SSD24, no matter how good, will not go faster than about 550–600MBps. NVMe SSDs, plugged into PCIe slots, can run much faster
-
Understanding the speed limitations of SATA 3 SSDs can help you make informed decisions when upgrading your storage.
plugged into PCIe slots, can run much faster. Still, for many, SATA is a sweet spot of performance and cost.SSD Interface Comparison Table
Interface Max Speed (MBps) Form Factor Compatibility Use Case SATA 3 ~550–600 2.5″ Laptops/desktops Upgrades SATA 2 ~300 2.5″/3.5″ Old hardware Older PCs NVMe 2000+ M.2/PCIe High-end devices Power users Conclusion
SATA 3 is the fast interface standard for most 2.5-inch SSDs, offering plug-and-play storage upgrades. “2.5 SATA SSD” means reliable performance, simple installation, and broad compatibility. ↩ ↩
